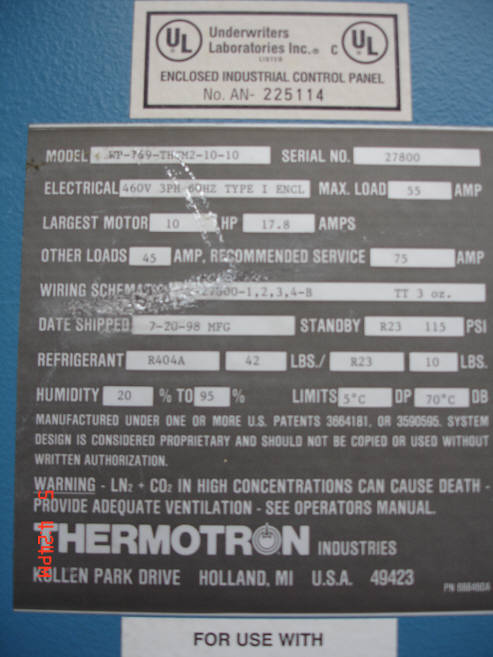

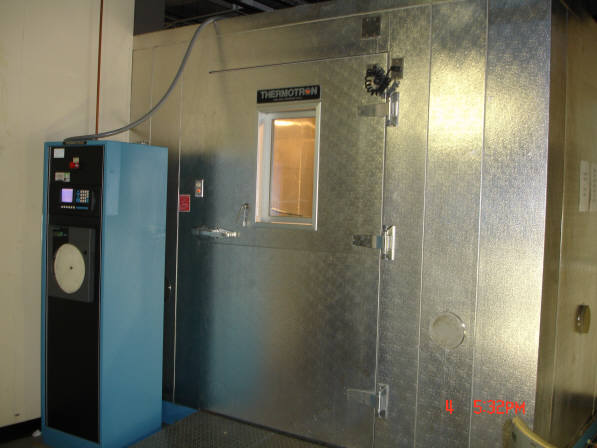

Thermotron Equipment Model WP769 Serial 27800 Ext. Dimensions
9'8"W X 11'7"D X 8'6"T. Int. Volume: 769 cubic feet. Door Dimensions: 4'wide X 7'tall with ramp.

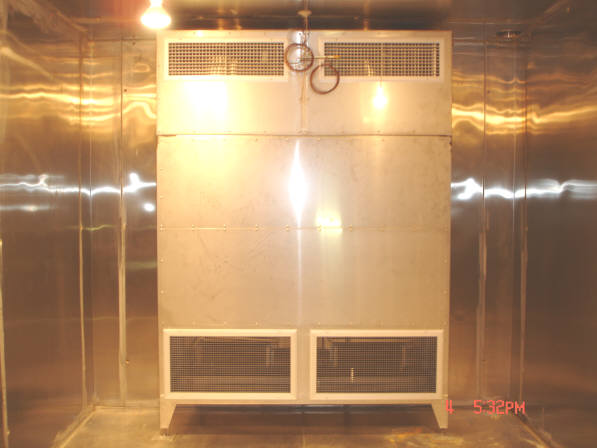

Floor is one piece
design, seamless and welded stainless steel with a 2" gutter around the interior perimeter.

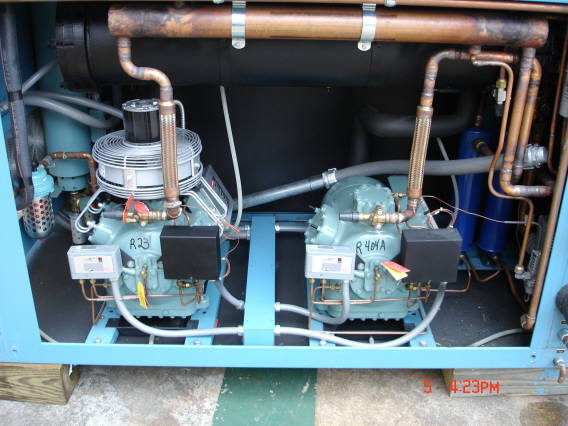

Module Model THMC2-10-10. 20 HP casade, 15kw heat, 3000 CFM, 68 FLA, 22 gpm water supply @ 85F inlet temperature.
Chamber performance from ambient (+21C) empty: -40C / 28 mins, +85C / 28 mins.
Chamber Range: -68C to +85C / RH Range is 20% to 95% limited by a 4.5C minimum dew point, +70C max dry bulb and +65C max dew
HFC Refrigerants: R404 & R23.
Digital Vaisala humidity sensor.
7800 controller with RS232/485.
Viewing Window: 14" X 23"
Mfg Date 7/98 ($92,200 new plus install)
Unit has 800 hours
of use, or equivalent to 30 days.
Location: Largo Fl, assembled and available for immediate inspection and run-test.
