WE SERVICE ALL MAKE AND MODEL TEST CHAMBERS

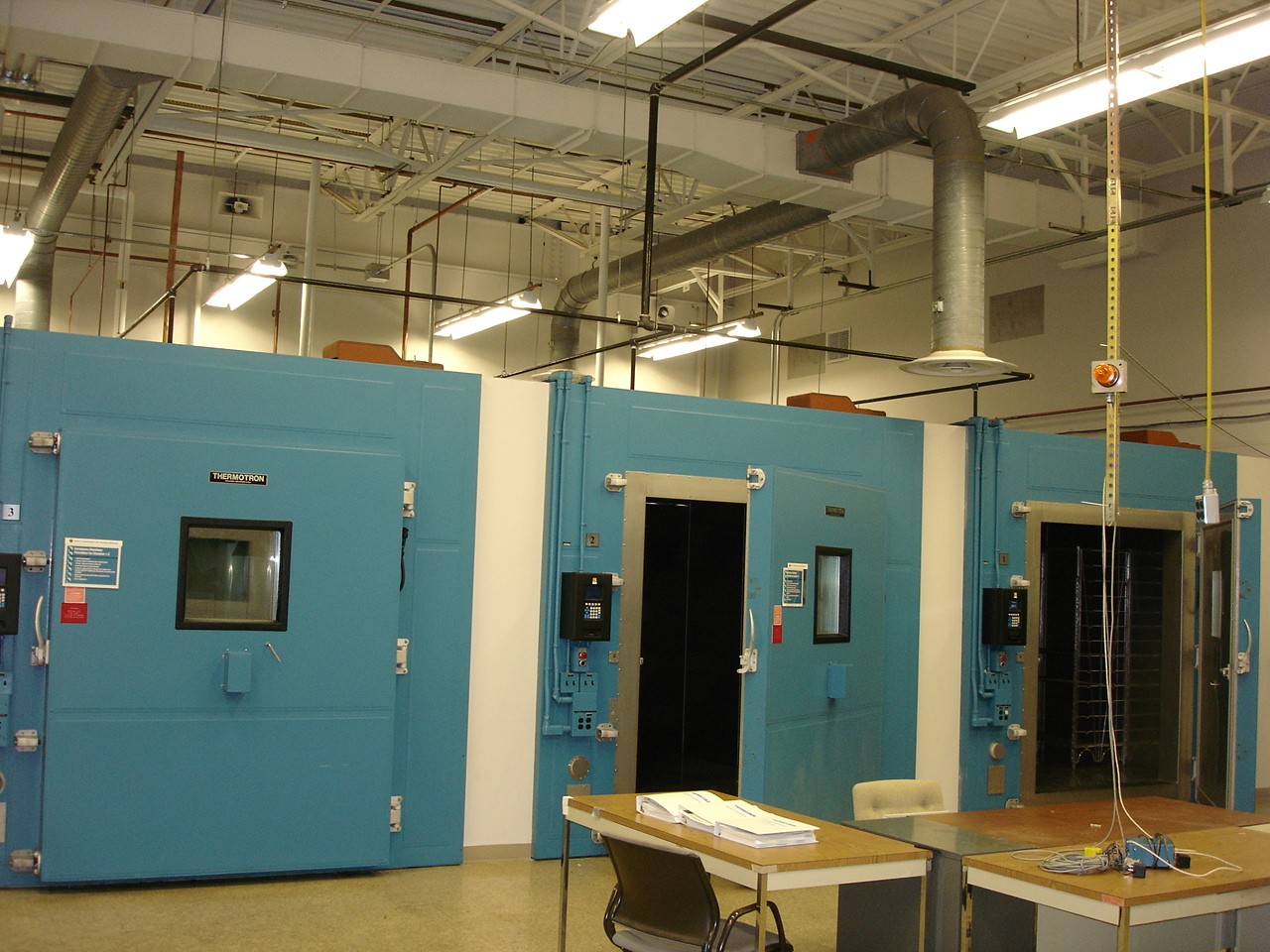

  • THERMOTRON Walk-In temperature humidity chamber

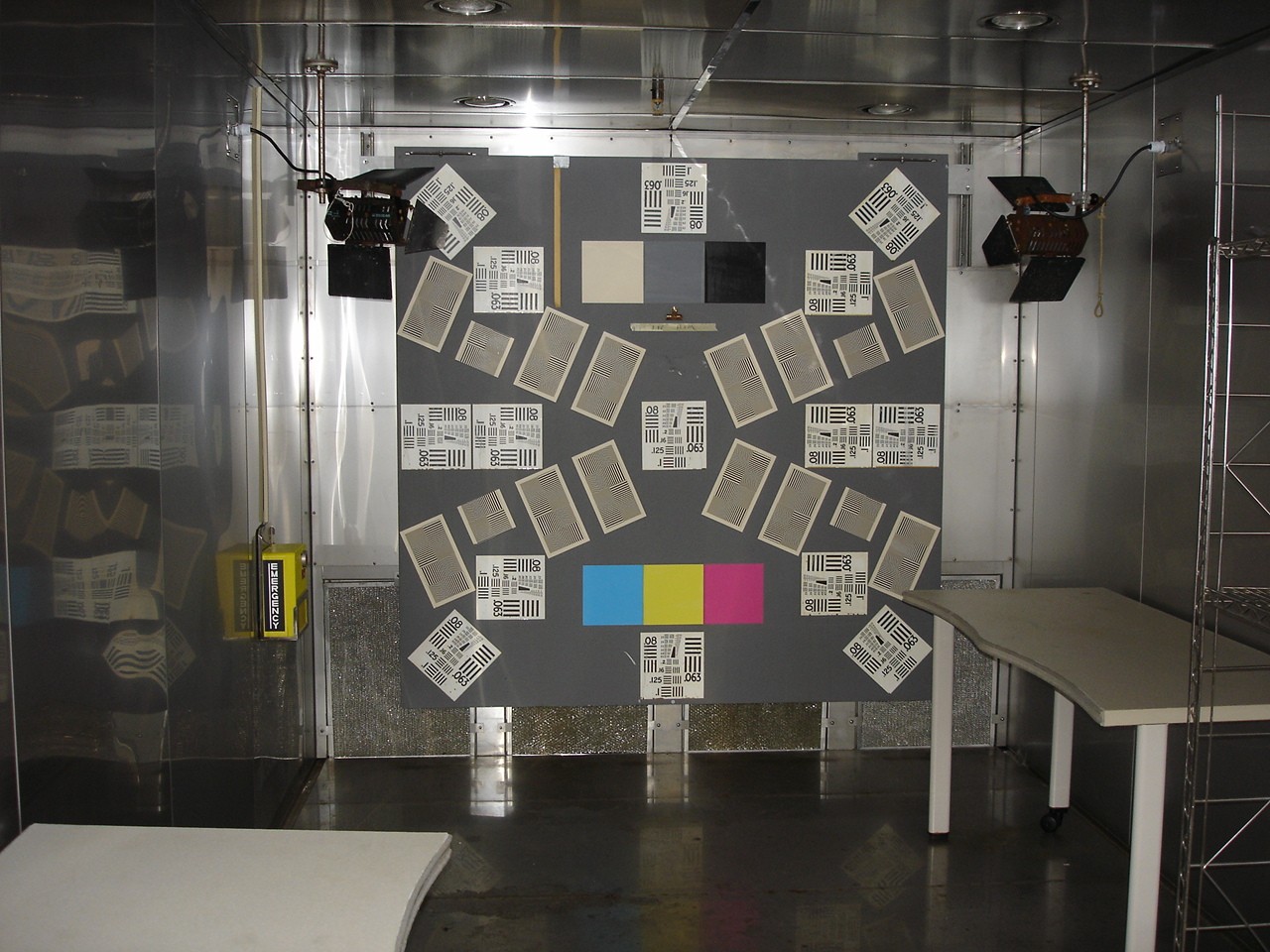

    MODEL WS-840-CHM-10. Welded one-piece construction. Stainless steel inteior.
    Approximate interior size is 8' X12' with a 6' wide X 7' tall door opening.
  • Temperature Range: -32C to 120C
  • Humidity Range: 35% to 95%
  • Ramp Rate - 2C per minute

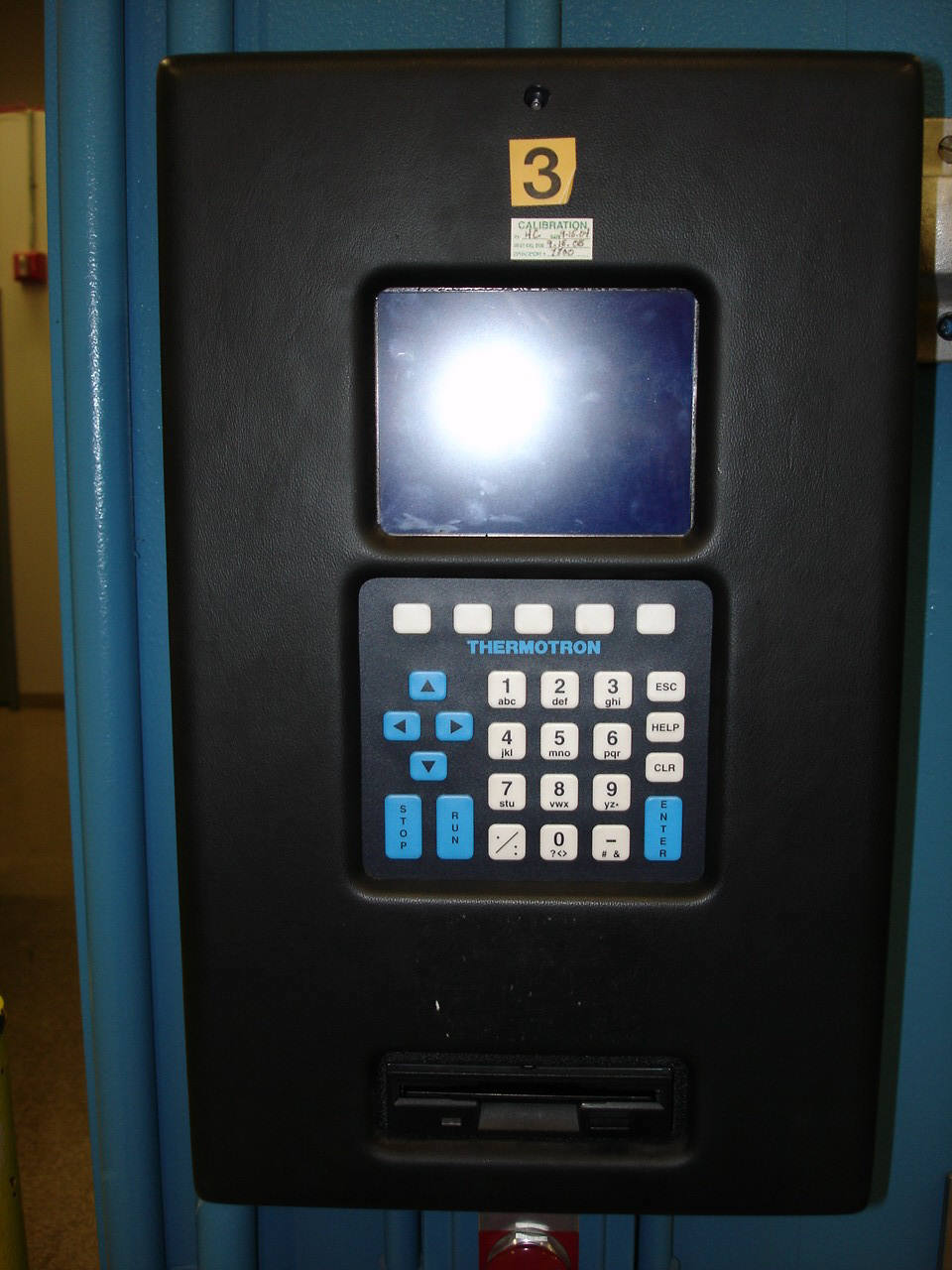

  • Thermotron 7800 Programable Controller
  • Refrigeration: Each box utilizes one 10 HP single stage compressors using R-507 refrigerant.
  • Year Built - 2001
    Units has very little use and in perfect condition

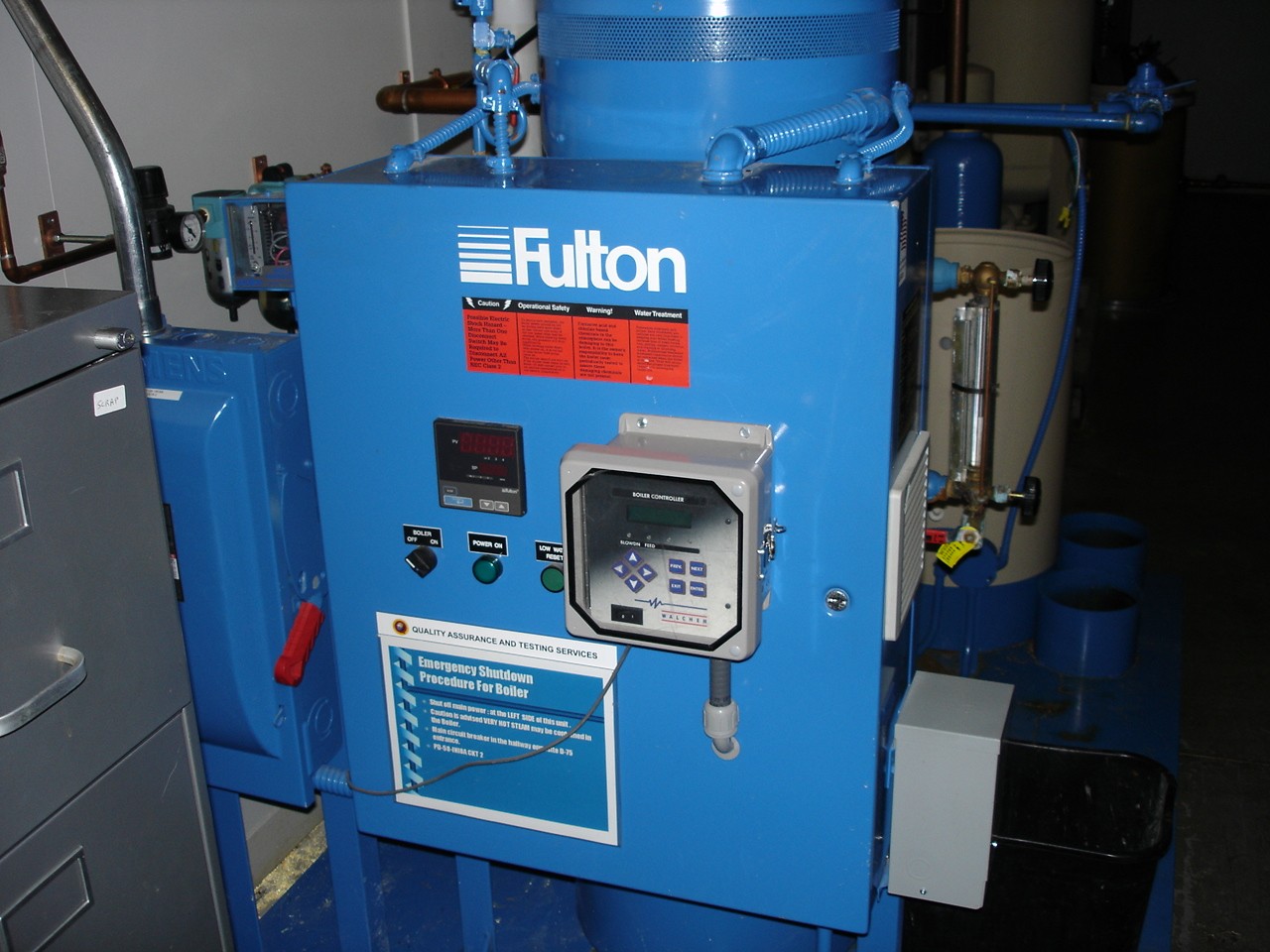

    Sytem only sold as a pair. One single steam generator feeds both chambers.
  • Voltage: 460 volts / 60 hz / 50 amps each, does not include steam generator.
  • Dry air purge - not integral, air supply must come from anther source. Syems has flow gauge and computer controlled electrically operated selenoid.
